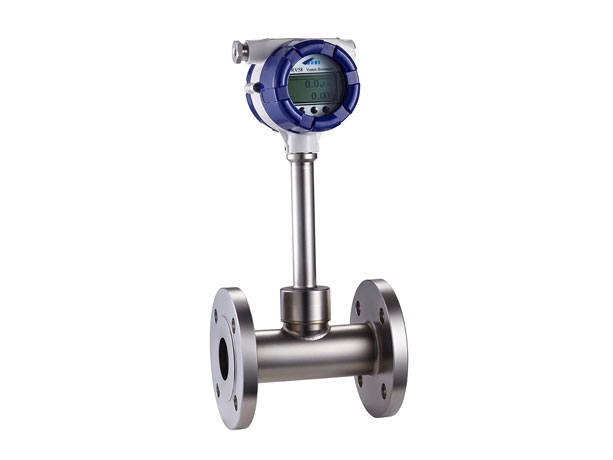

RV58 series intelligent vortex flowmeters are divided into 3 basic types according to the application situation of the board.

?Two line 24V DC; 4 ~ 20mA superposition Hart communication; pulse output;

?Temperature and pressure compensation, two line 24V D, 4 ~ 20mA superposition Hart communication, pulse output;

?24V DC/3.6VDouble power supply, display instantaneous and cumulative flow.

2.Features

?Simple structure, no moving part, reliable, durable with one echelon vortex generator;

?Output is proportional with flow rate;

?The two pieces piezoelectric components are used to tests the vortex being not contact with the medium;

?Liquid, gas and vapor could be measured by transmitters with same structure;

?The mediums under all temp. and pres. could be measured;

?The three lines show the instantaneous flow rate, the cumulative total amount, the third line frequency, the pressure, the temperature, the density, the current and the percentage.

?4 ~ 20mA stack Hart output, pulse output;

?Support two temperature calibration and two pressure calibration, temperature and pressure can be set as manual input or automatic acquisition
